DE-305温度表(温度计)（K型探头）

温度表(温度计)（K型探头）便携式热电偶，热电偶，高精度热电偶，k型热电偶，de305，de306产品特点：● 單組測量、雙組測量量測功能 ● 讀值鎖定功能 ● 最大讀值鎖定功能 ● 量測範圍寬廣：-50°C~1300°C (-58°F~1999°F) ● 測量單位切換選擇(°C/°F)

型号： DE-305

品牌： well唯乐

DE-305

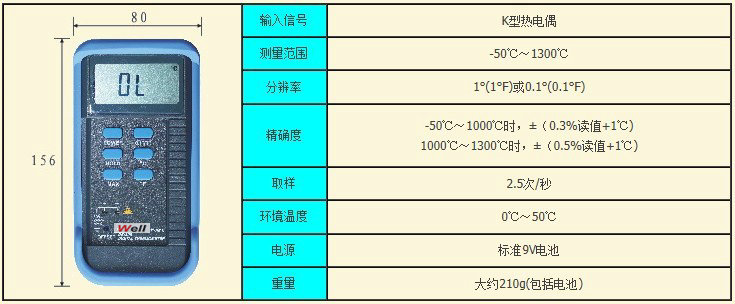

規　格

測量型態：K-TYPE
LCD 顯示幕：3½位液晶顯示幕之單位功能指示、最大測試讀值1999位數。
表示電池電量不足，未插測試線及過載之顯示”OL”。
量測頻道：DE-3003單組測量
DE-3004雙組測量
取樣：每秒約2.5次
解析度：DE-305 0.1°C/0.1°F, 1°C/1°F
DE-306 1°C/1°F
量測範圍：-50°C~1300°C(-58°F~1999°F)
輸入限制：最大輸入電壓60V DC或24V rms AC
電源供應：9V電池(NEDA 1604, IEC 6F22, JIS 006P)

溫度/溼度

操作溫度/溼度：0°C~50°C(32°F~122°F)/低於80%R.H.(不結露)
儲存溫度/溼度：-10°C~60°C(14°F~140°F)/低於70%R.H.(不結露)

外型尺寸/重量

尺寸：148(長)x71(寬)x36(高)mm
重量：約210公克(含電池)

附　件

電池 9V x 1
使用說明書 x 1
K-TYPE 熱電偶測試線(NR-39) x 1
腳架及保護套 x 1
備註：所附NR-39(或NR-39B)熱電偶測試線，適用於-50°C~200°C(-58°F~392°F) 測試用。
如欲做較高溫度的測試，請另選購適用之熱電偶

量測範圍測量環境：23°C±5°C在80%R.H.以內

DE-305

量測範圍	準確度 ±(%讀值+°C)
-50°C~1000°C	±(0.3%+1°C)
1000°C~1300°C	±(0.5%+1°C)
-58°F~1999°F	±(0.3%+2°F)

The New Digital Thermometer DE-305

DE-305 Digital Thermometer

LARGE SIZE LCD INDICATION
LOW BATTERY INDICATION
K-TYPE THERMOCOUPLE (OPTION)
HANDHELD LIGHTWEIGHT DESIGN
READING HOLD FUNCTION
MAXIMUM RECORD
^oC or ^oF ANNUNCIATORS DISPLAY
1^oC OR 0.1^oC (1^oF or 0.1^oF)
^oC ^oF SWITCHABLE ON FRONT PANEL
SINGLE THERMOCOUPLE INPUT
USER-SELECTABLE RESOLUTION
FRONT PANEL OFFSET ADJUSTMENT

SPECIFICATIONS

Technical
Temperature scale: ^oC or ^oF   User-Selective.
Resolution: 1^oC or 1^oF (or 0.1^oC or 0.1^oF)
                      User-Selectable
Inputs: One K-type Thermocouple
Measurement Range: -50 ~ 1300^oC, (-59 ~ 2000^oF)
Meter Operating Range: For Using at 0^oC ~ 50^oC
Environment(32 ~ 122^oF)
Accuracy: (18~28^oC ambient)
±(0.3%rdg + 1^oC) -50 ~ 1000^oC
±(0.5%rdg + 1^oC) 1000 ~ 1300^oC
±(0.3%rdg + 2^oF) -58 ~ 2000^oC
The accuracy specification does not include
type D thermocouple probe accuracy.
Temperature Coefficient:
0.1 times the applicable accuracy specification per
^oC from 0^oC to 18^oC to 50^oC
Error Offset: Errors contributed by one particular thermocouple may be practically eliminated, over a limited measurement range, using a recessed front panel OFFSET adjust on the meter and an accurate temperature standard when making the adjustment. Although making the adjustment may increase measurement errors for using different themocouples
Maximum Input: 60V dc or 24V rms ac
between the input pins or any input and ground.

General
Display: 31/2 digit liquid crystal display (LCD) with maximum reading of 1999.
Sampling Rate: 2.5 times per second
Battery: One 9 V battery (6F 22)
Dimensions (mm): 148(H)x71(W)x36(D)
Weight: 208g (including battery)
Power current: Approx. DC 2.8mA (typical)

Enclosure
1. Manual    2. Battery 9V .    3. Rubber Holster

Accessories for Customer Option

1. NR-31B	2. NR-33	3. NR-34
4. NR-39	5. NR-34-INCO

6.WT41 7.WT42 8.WT43 9.WT45 10.WT46 11.WT47
